Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

Brand Name : Sussman

Model Number : SM-RP

Certification : CE ISO SGS

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.3-0.8mm Galvanized steel coils or PPGI

Motor Power : 7.5 KW

Rolling speed : 10-12m/min

Roller statione : About 24 stations

Cutting method : hydraulic stop cutting

Application : architectural wall panels, Wall Panel & Siding Systems

profile width : 16"

Warranty : 12 months

Contact Now

Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine


Technical Parameter

Item NO

Description

Offered specification
1.1 Rolling speed 10-12m/min
1.2 Rolling thickness 0.4-0.8mm
1.3 Raw material Galvanized steel coils or PPGI
1.4 Main motor 7.5kw
1.5 Hydraulic motor 4kw
1.6 dimension 9000×1000×1000(mm)
1.7 Roller stations About 24 stations
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ70mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-0.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases



Main Components

No Name Quantity
1 5 ton manual de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out table 2 units
6 Safety cover 1 unit

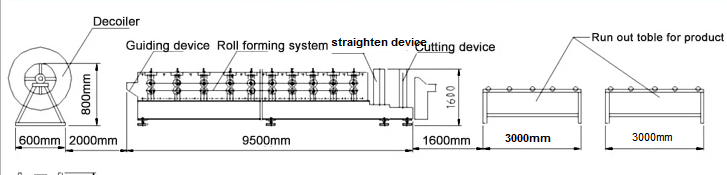

Glazed tile working flow

Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

Profile Drawing

Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

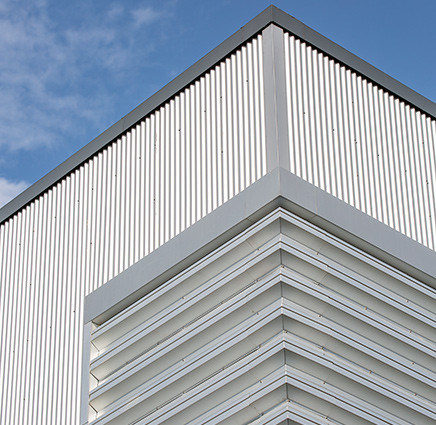

Application

Metal steel wall cladding sheets is widely used inresidential buildings, modern design buildings, offices, shops, trade buildings, sport halls, exhibition bildings, industrial buildings, public buildings, storehouse halls, .


Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine

Metal Wall Panel & Siding Systems Box Rib Profiles Metal Sliding Panel Roll Forming Machine
